SBE Solar Tech 12v Analog Solar Tracker Control Board




You buy SBE Solar Tech 12v Analog Solar Tracker Control Board with Coupon : KOPA will be discounted 10%


.


Why Use SBE Solar Tech 12v Analog Solar Tracker Control Board ?

Design rich colors to choose fromOnline shopping for Automotive · Tools & Equipment · Jump Starters, Battery Chargers & Portable Power; Jump Starters . This pallet flag provides a twist on the usual flag design by replacing the blue field of stars with a cutout map of the United States with a string art star! Perfect for the 4th of July, this pallet flag will bring flea market style to your patriotic celebration!.​


SBE Solar Tech 12v Analog Solar Tracker Control Board will help your job easier dexThis solar tracking controller will drive a motor to position anything you want to follow the sun on a single axis. It can be used to position solar cells, a reflector to heat water, or anything else. The controller is mounted on the object to be steered with the sensors positioned along the rotational axis. Using most any D.C. motor up to a maximum of 12 VDC @ 4 amps, it can easily cause a solar collector, reflector or array to follow the sun through a single axis. There is no "reposition for the morning" electronics, but I intentionally used sensors with a wide field of view. In the morning the "east" sensor will trip and the controller will position to point at the morning sun.

This controller will work with 12V motors, solar panels, and batteries. You should not exceed 20V with these. You will need to mount this under glass or plastic to protect it from the weather. A glass or plastic jar upside down works pretty good. Wiring instructions are included. You should use limit switches in your design unless what you are controlling is free to move in a full circle, or they are built into your actuators.

The controller has enough hysteresis built-in to the design so that it does not oscillate and positions the device smoothly. This controller can also be used to steer any device along a single axis to follow a light source. Note that this controller is tuned for sunlight, I use a 3 watt LED light to test it with. If you are planning on using this for something other than tracking the sun, please let me know and I can adjust the sensitivity of your board.

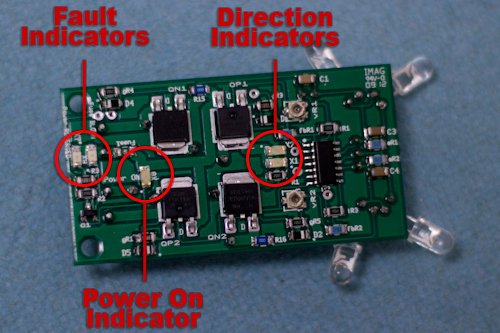

Solid state, no relays to wear out. Controller has indicator LED's to let your know when the sensors have tripped.


These can easily be wired for manual tracking with a couple of switches. I will include instructions on how to do this with your purchase.
