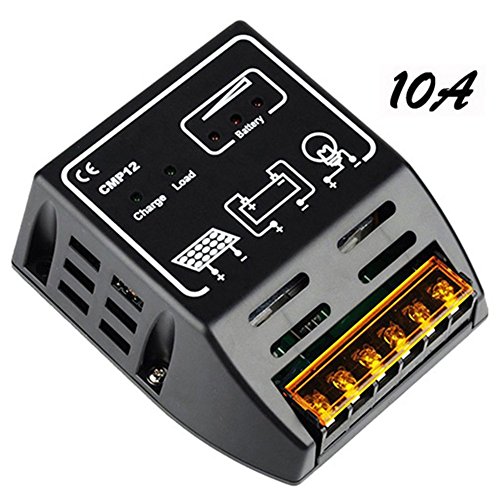

Hightech Solar Charging Controller Solar Panel Battery Regulator Safe Protection 12V/24V (A)
You buy Hightech Solar Charging Controller Solar Panel Battery Regulator Safe Protection 12V/24V (A) with Coupon : KOPA will be discounted 10%
.
Why Use Hightech Solar Charging Controller Solar Panel Battery Regulator Safe Protection 12V/24V (A) ?
Design rich colors to choose fromOnline shopping for Automotive · Tools & Equipment · Jump Starters, Battery Chargers & Portable Power; Jump Starters . This pallet flag provides a twist on the usual flag design by replacing the blue field of stars with a cutout map of the United States with a string art star! Perfect for the 4th of July, this pallet flag will bring flea market style to your patriotic celebration!.Hightech Solar Charging Controller Solar Panel Battery Regulator Safe Protection 12V/24V (A) will help your job easier dexSpecifications:
System voltage DC 12V/24V
Controller consumable 10MA
Rated charge current 10A
Rated load current 10A
Overcharge protection 14.4V/28.8V
Float 13.5V/27V
The maximum open circuit voltage of the solar cell: 25V/36V
Working temperature: -20 oC - + 50 oC
Performance:
a. Short-circuit protection
b. Overload
c. Overcharge, over-discharge protection
d. Undervoltage protection
e. Anti-anti-charge, anti-reverse protection
Instructions:
Open the controller cover, according to the cover illustration of the connection.
1. Insert the battery, "+", "-" correctly connected to the controller corresponding terminals (left 3, 4 terminals).
* Load Indicator (load) blinks and lights up 15-30 seconds later, you are connected correctly, you can proceed with the following connections. Otherwise it will damage the controller.
2. The solar panels on the "+", "-" correctly connected to the controller corresponding terminals (left first and two terminals).
3. Load the "+", "-" correctly connected to the controller corresponding terminals (left 5, 6 terminals).
4. The charge indicator light indicates charging is strong; blinking is a floating charge; No light indicates charging stops.
5. Load indicator light indicates there is output and load can work; no light means no output, the load can not work.
Precautions:
1. Make sure that before connecting the solar panels, batteries, rated voltage of the load, the rated voltage of the three should be the same, and are 6V, 12V, or both are 24V.
2. Solar panels, rated current of the load shall not exceed the rated current of the controller. 20A: Model: BSV-CC002
