Findyouled MC4 Male / Female Solar Panel Cable Connector, 20 Pairs
You buy Findyouled MC4 Male / Female Solar Panel Cable Connector, 20 Pairs with Coupon : KOPA will be discounted 10%
.
Why Use Findyouled MC4 Male / Female Solar Panel Cable Connector, 20 Pairs ?
Design rich colors to choose fromOnline shopping for Automotive · Tools & Equipment · Jump Starters, Battery Chargers & Portable Power; Jump Starters . This pallet flag provides a twist on the usual flag design by replacing the blue field of stars with a cutout map of the United States with a string art star! Perfect for the 4th of July, this pallet flag will bring flea market style to your patriotic celebration!.Findyouled MC4 Male / Female Solar Panel Cable Connector, 20 Pairs will help your job easier dexSIGA® MC4 Solar Panel Connector
These are MC4 Style Connectors which are approved by CE, TUV. They are used to connect multiple solar panels or groups of solar panels together in a solar field, and typically used in parallel applications. The metal pin is made from high quality machined copper and sealed tip (compare to the cheap sheet metal pin) that can ensure excellent electrical contact.
Main Features :
With excellent aging resistance and UV endurance, it can be used in harsh environment.
The cable connection adopts means of rivet and lock.
It does not need extra instruments for the removal of plugs and removal will not cause any harm to plugs
20 Years Warranty!!!
Specifications :
Rated Current : 16A (2.5㎡, AWG14), 30A(4㎡, AWG12), 52A (6㎡, AWG10)
Withstanding voltage: 1000V DC
Protection Class: Class II
Suitable cable Lines: AWG12/ AWG10
Protection Degree: IP67, mated
Insulation Material: PPO + PA
Contact Material: Copper, silver plated
Flame Class: UL94-V0
Pollution degree: 2
Ambient temperature range: -40 ℃ to +105 ℃
Insertion force: less than 50N
Withdrawal force: over 50N
Weight: 0.480Kg
Package：

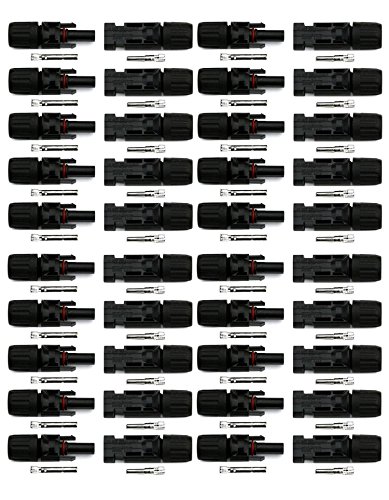

20Pairs of MC4 Male/Female Solar Panel cable Connectors
20pairs of solar connector pins (male &female)
You buy Findyouled MC4 Male / Female Solar Panel Cable Connector, 20 Pairs with Coupon : KOPA will be discounted 10%
