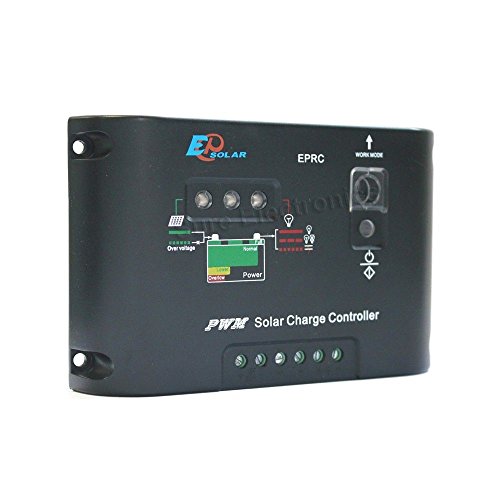

EPsolar EPRC10EC Light Control PWM Solar Battery Charge Controller 10A 12/24V


You buy EPsolar EPRC10EC Light Control PWM Solar Battery Charge Controller 10A 12/24V with Coupon : KOPA will be discounted 10%
.
Why Use EPsolar EPRC10EC Light Control PWM Solar Battery Charge Controller 10A 12/24V ?
Design rich colors to choose fromOnline shopping for Automotive · Tools & Equipment · Jump Starters, Battery Chargers & Portable Power; Jump Starters . This pallet flag provides a twist on the usual flag design by replacing the blue field of stars with a cutout map of the United States with a string art star! Perfect for the 4th of July, this pallet flag will bring flea market style to your patriotic celebration!.EPsolar EPRC10EC Light Control PWM Solar Battery Charge Controller 10A 12/24V will help your job easier dex"Introduction
EPRC10-EC series solar controller is a reliable and economical solar controller.
Load work mode: Dusk to Dawn, Light ON+ timer, TEST, ON/OFF
Features:
Intelligent System Optimum Control
12/24V auto work
High efficient Series PWM charging with temperature compensation
Use MOSFET as electronic switch, without any mechanical switch
Detects day and night using the PV array
Load and battery status indicators
Electronic protection: over charging, over discharging, overload, and short circuit
Specifications:
Electrical parameters
System voltage:12 / 24VDC Auto work
Nominal battery current:10A
Charge circuit voltage drop:≤0.26V
Discharge circuit voltage drop:≤0.15V
Self consumption:≤6mA
Equalize charging voltage:14.8V;x2/24V
Boost charging voltage:14.4V;x2/24V
Float charging voltage:13.7V;x2/24V
Low voltage reconnect charging voltage:13.2V;x2/24V
Under voltage warning voltage:12V; x2/24V
Low voltage disconnect voltage:11.1V;x2/24V
Equalize duration:60 MINS
Boost duration:60 MINS
Working temperature:-35℃ to +55
Humidity:10%-90% NC
Enclosure:IP30
Terminal:4mm2
Net weight:0.15KG"
