Y-SOLAR 3A 6V Mini Solar Charge And Discharge Controller For Lead-acid Battery Small Solar Panel System
You buy Y-SOLAR 3A 6V Mini Solar Charge And Discharge Controller For Lead-acid Battery Small Solar Panel System with Coupon : KOPA will be discounted 10%
.
Why Use Y-SOLAR 3A 6V Mini Solar Charge And Discharge Controller For Lead-acid Battery Small Solar Panel System ?
Design rich colors to choose fromOnline shopping for Automotive · Tools & Equipment · Jump Starters, Battery Chargers & Portable Power; Jump Starters . This pallet flag provides a twist on the usual flag design by replacing the blue field of stars with a cutout map of the United States with a string art star! Perfect for the 4th of July, this pallet flag will bring flea market style to your patriotic celebration!.Y-SOLAR 3A 6V Mini Solar Charge And Discharge Controller For Lead-acid Battery Small Solar Panel System will help your job easier dexThis solar charge controller designed for solar home system, Mini solar advertising light box and so on. The box of the controller is compact sealed with silicon. They have the function of Temperature Compensation during charging and Sensor Control (optional).
Notice: There is no light and timer control function,it`s just a charge and discharge controller.
Package:
1. 1PCS 3A 6V Solar Charge Controller
Function:
1. Prevent the battery from over charging, over discharging and Reverse discharging to solar panel during nights.
2. Overcharging and Over discharging protection
3. Prevent the reverse current from the battery to the solar panel at night time.
Indicator:
1. One charging indicator, light indicates strong charging, flash indicates float charging, not light indicates stop charging.
2. One Load indicator, light indicates there is power output, the loads could normal working, not light indicates no output, check whether the battery is in low-voltage or the connection is OK .
Attention:
1.Please check the rated voltage of the solar panel and loads,they must be same with controller,all their rated voltage should be 6V or 12V.
2.The controller can not short circuit.
3.Forbid use other DC power supply instead of solar panels for the battery charging through the controller.

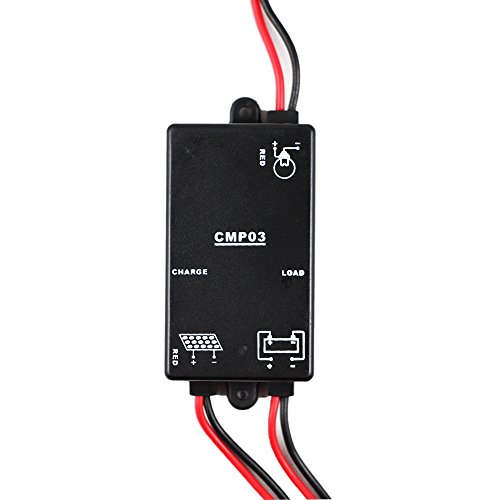

CMP-03 Data Sheet
Model:CMP-03
Rated Voltage:DC6V
Max Current:3A
voltage of solar panels:18W(3A,6v)
Charge-stop Voltage: 7.2V
Coefficient of Stop Voltage and Temp:-3mV/¡ãC/cell
Supply-stop Voltage:5.3V
Supply-resume Voltage:6V
Light Control Mode:Visibility 20M
Working Temp:-10¡ãC - +40¡ãC;
Weight:33g
Notice:Sensor Control if customer need it.
