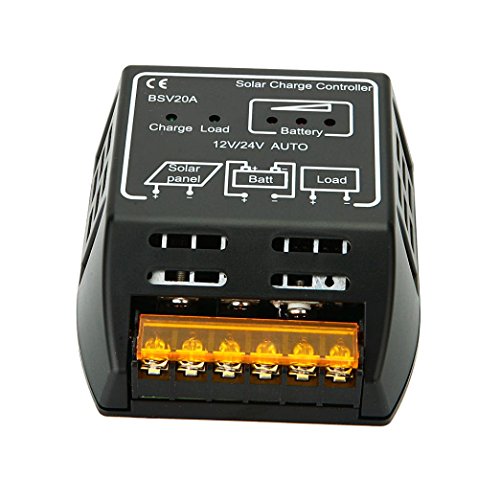

Bestpriceam® 20A 12V/24V Solar Panel Charge Controller Battery Regulator Safe Protection
You buy Bestpriceam® 20A 12V/24V Solar Panel Charge Controller Battery Regulator Safe Protection with Coupon : KOPA will be discounted 10%
.
Why Use Bestpriceam® 20A 12V/24V Solar Panel Charge Controller Battery Regulator Safe Protection ?
Design rich colors to choose fromOnline shopping for Automotive · Tools & Equipment · Jump Starters, Battery Chargers & Portable Power; Jump Starters . This pallet flag provides a twist on the usual flag design by replacing the blue field of stars with a cutout map of the United States with a string art star! Perfect for the 4th of July, this pallet flag will bring flea market style to your patriotic celebration!.Bestpriceam® 20A 12V/24V Solar Panel Charge Controller Battery Regulator Safe Protection will help your job easier dex
Product Specification:
Voltage:DC12V/24V
Self-consuming:10MA
Rated Charge Current:20A
Rated Load Current:20A
Over Charge Protection:14.4V/28.8V
Floating Charge:13.5V/27V
Recover:13.2V/26.4V
Over Discharge Protection:10.8V/21.6V
Recover:12.3V/24.6V
Load Over Voltage Protection:16.5V/34V
Recover:15V/30V
Max Open-circuit Voltage of the Solar Panel:25V/36V
Operating Temperature:(-20℃- +50℃)
Product Performance:
Short circuit protection
Over-load protection
Over charge and discharge protection
Under voltage protection
Reverse discharging and reverse-polarity protection
Method of Operation:
Open the top cover of controller and connect the wire and terminals of controller according to the drawing.
1. Connect the "+", "-" poles of the battery to the correct ports of controller (the third and the fourth one from left). The load indicator (mark: load) starts lighting.
2. Connect the "+", "-" poles of the solar panel to the correct ports of controller (the first and the second one from left).
3. Connect the "+", "-" poles of the load to the correct ports of controller (the fifth and the sixth one from left). Indicator led
4. The battery is being charged strongly when the charge led is lighting; flickering means the battery is in floating charge mode. If it's off, that means charging stopped.
5. When the load led is lighting, it means there is output and load can work. If it's off, there isn't output and the load cannot work.
Note:
Please make sure the rated voltage of solar panels, batteries and the loads are same and are all 6V or all 12V or all 24V.
The rated current of solar panels and loads must be less than the rated current of controller.
Package Content:
1X 20A 12V/24V Solar Panel Charge Controller
