Sewell Solar Panel PV Cable UL Rated, 10 AWG, 100 ft. Roll
You buy Sewell Solar Panel PV Cable UL Rated, 10 AWG, 100 ft. Roll with Coupon : KOPA will be discounted 10%
.
Why Use Sewell Solar Panel PV Cable UL Rated, 10 AWG, 100 ft. Roll ?
Design rich colors to choose fromOnline shopping for Automotive · Tools & Equipment · Jump Starters, Battery Chargers & Portable Power; Jump Starters . This pallet flag provides a twist on the usual flag design by replacing the blue field of stars with a cutout map of the United States with a string art star! Perfect for the 4th of July, this pallet flag will bring flea market style to your patriotic celebration!.Sewell Solar Panel PV Cable UL Rated, 10 AWG, 100 ft. Roll will help your job easier dexExplanation

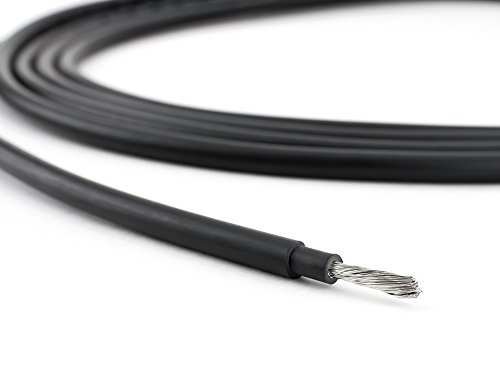

Are you looking to install Solar Panels? You're going to need some reliable Solar Panel PV Cable. Sewell Solar Panel PV Cable is UL approved, double insulated, and made with tinned copper for a long lasting and quality connection.
Reliability
Sewell Solar Panel PV Cable is made of tinned copper, which has a longer conductivity life than copper. It is covered by a two layer jacket of polyolefin copolymer which is waterproof, sunlight resistant, and extremely durable. You can trust that this cable is ready to connect to your Solar Panels and bring consistent power to your home.
Easy to Install
Sewell Solar Panel PV Wire requires a solderless termination before use. The 100 ft. roll of PV cable comes in an easy pull box. You can easily cut your cable to your desire length and easily connect your MC4 Connectors on within minutes.
Construction
• Made of Tinned Copper, according to the VDE 0295/IEC 60228, Class 5
• Insulation: Polyolefin copolymer electron-beam cross-linked
• Outer Sheath: Polyolefin copolymer electron-beam cross-linked
• Sheath Color: Black
Specifications
• Nominal Voltage: Uo/U= 600/1000 VAC, 1000/1800 VDC
• Test Voltage: 6500V, 50HZ, 5 min.
• Temperature Rating: 45 C up to + 125 C, -40 F up to 194 F
• Max Short circuit temperature: 280 C, +536 F
• Bending Radius: Fixed Installation > 4X, Occasionally Moved > 5X
Material Properties
• Fire Performance: IEC 60332-1; UL1581 1061/VW1
• Smoke Emission: IEC 61034; EN 50268-2
• Low Fire Load: DIN 51900
• Approvals: UL4703 PV Wire, UL854 USE-2
• Application Standards: NEC 2008/UL PV Wire, USE-2
You buy Sewell Solar Panel PV Cable UL Rated, 10 AWG, 100 ft. Roll with Coupon : KOPA will be discounted 10%
