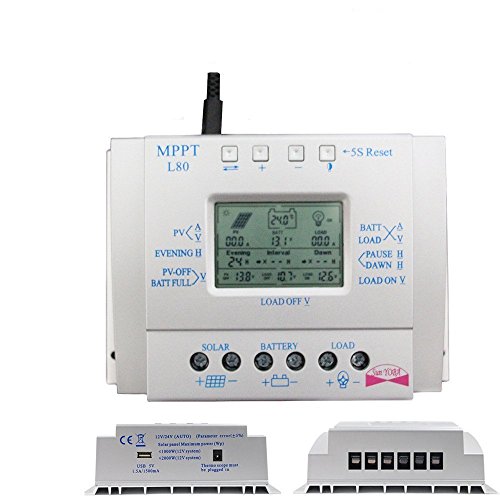

Y-SOLAR 60a 80a Solar Battery Charge Controller LCD 12V 24V Auto with USB with Load Timer and Light Control for Lighting (80A)
You buy Y-SOLAR 60a 80a Solar Battery Charge Controller LCD 12V 24V Auto with USB with Load Timer and Light Control for Lighting (80A) with Coupon : KOPA will be discounted 10%
.
Why Use Y-SOLAR 60a 80a Solar Battery Charge Controller LCD 12V 24V Auto with USB with Load Timer and Light Control for Lighting (80A) ?
Design rich colors to choose fromOnline shopping for Automotive · Tools & Equipment · Jump Starters, Battery Chargers & Portable Power; Jump Starters . This pallet flag provides a twist on the usual flag design by replacing the blue field of stars with a cutout map of the United States with a string art star! Perfect for the 4th of July, this pallet flag will bring flea market style to your patriotic celebration!.Y-SOLAR 60a 80a Solar Battery Charge Controller LCD 12V 24V Auto with USB with Load Timer and Light Control for Lighting (80A) will help your job easier dexNotice: Not True MPPT,there is no large transformer coil inside.
Maximum Power Current: 80A
Installation Lin(mm2): 20mm2
Installaton Line(AWG): 2#(AWG)
Weight: 900g
Peak power of solar cell panel (Max Wp): 1000W
Battery capacity configuration: 800AH
Dimensions: 188*128*61(mm)
Battery float voltage: 13.8V(12V system)/27.6V(24V system)
Battery (under voltage) protection: 10.6V(12V system)/21.2V(24V system)
Battery(under voltage)recovery voltage: 12.6V(12V system)/25.2V(24V system)
System load loss:< =13mA: Loop Buck;< =100mV
Operation Temperature :-10°C~60°C: Storage Temperature :-30°C~-70°C
Operation Temperature :< =90%,No condensation: Temperature compensation :-4mV/Cell/°C
Maximum open circuit voltage of the solar panel: 18V~24V(12V system) 36V~48V(24V system)
Solar Panel maximum open circuit voltage: < =48V
This is a three-time controller into the evening(evening)working time,
an interval of rest or pause time,Dawn working time(morning light function),
the user can according to their needs,set a different time.
A:time(evening working)
B:time(Pause working)
C:time(dawn working)
This is a compatible MPPT charge controller PWM intelligent/efficient/energy saving,
he not only has efficient MPPT controller charging function to automatically track the maximum power point,
10%-30% higher than the ordinary controller chargingefficiency,
also has standby energy saving,more than 30% energy than ordinary controller,the standby power consumption of only 10mA-15mA.
Packing Including:
1 x 80A Solar Controller
1 x Temperature Sensor
1 x English User Manual
