ECO-WORTHY 1KW Complete Solar Kit: 6pcs 180W Solar Panel+Solar Cable+45A PWM Charge Controller+MC4 Branch Connectors+Z Bracket Mounts
You buy ECO-WORTHY 1KW Complete Solar Kit: 6pcs 180W Solar Panel+Solar Cable+45A PWM Charge Controller+MC4 Branch Connectors+Z Bracket Mounts with Coupon : KOPA will be discounted 10%
.
Why Use ECO-WORTHY 1KW Complete Solar Kit: 6pcs 180W Solar Panel+Solar Cable+45A PWM Charge Controller+MC4 Branch Connectors+Z Bracket Mounts ?
Design rich colors to choose fromOnline shopping for Automotive · Tools & Equipment · Jump Starters, Battery Chargers & Portable Power; Jump Starters . This pallet flag provides a twist on the usual flag design by replacing the blue field of stars with a cutout map of the United States with a string art star! Perfect for the 4th of July, this pallet flag will bring flea market style to your patriotic celebration!.ECO-WORTHY 1KW Complete Solar Kit: 6pcs 180W Solar Panel+Solar Cable+45A PWM Charge Controller+MC4 Branch Connectors+Z Bracket Mounts will help your job easier dex180W Poly Solar Panel
Related power: 180W
Open Circuit Voltage(Voc): 44.89V
Maximum/Peak Voltage(Vmp): 35.16V
Short circuit current (Isc): 5.49A
Maximum/Peak Current(Imp): 5.12A
Output Tolerance: ±3%
Frame: Heavy duty aluminum
Guarantee of power : 90% within 10 years, 80% within 25 years
Kind of glass and its thickness: Low Iron, high transparency tempered glass of 3.2mm
The Test Conditions: 1kw/㎡, 25℃, AM1.5
SLA Battery Voltage: 24V
Size: 51.8*39.1*1.38in (1316*992*35mm)
45A PWM Charge Controller
Maximum Charging Current: 45A
Maximum Loading Current: 45A
Rated Voltage: 12V/24V
Temperature Compensation: -4.7mv/cell· °C
Charging Circuit Voltage: <200mv
Environment Temperature: -15 °C~+60 °C
Working Tacitly Approved: Charge Off
Voltage 13.7v/27.4V
Load Off Voltage: 10.5V/21V
Load On Voltage: 12.6V/25.2V
MAX Solar Panel: 540W/1080W
Waterproof Class: IP22

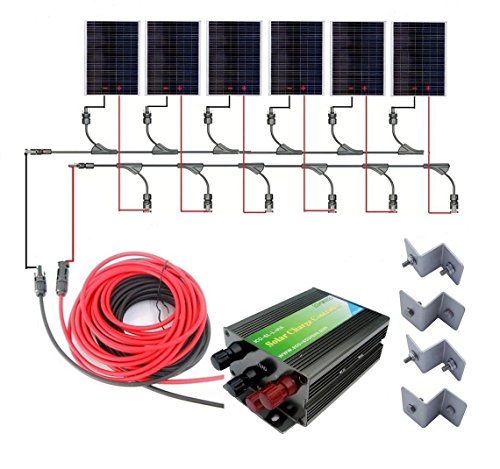

Package Included:
6 pcs 180W Poly Solar Panel with MC4 Connector
6 set Z Style Mounting Kit
1pc 45A Solar Controller
1 pair MC4 with 5 meter 4mm² Extension Solar Cable (5meter Red and 5meter Black)
5 pairs Y MC4 Solar Connector
